Assessment of LV diastolic function primarily depends on the Doppler flow profile across the mitral valve and also to be noted are the 2D features of LA and LV for associated abnormality like LVH, LAE etc.

Why diastolic dysfunction assessment difficult in AF ?

Since most diastolic doppler mitral inflow parameters involve analysis of atrial contraction A wave, atrial fibrillation makes it difficult to assess diastolic dysfunction. Since we have only early diastolic velocity to assess, the changes confined to this E velocity is of paramount importance. This E velocity again is subjected to cycle length dependent alteration in both its acceleration and deceleration time , making things still more complex.

However, the following features help diagnose diastolic dysfunction in AF

  1. Lack of significant  E velocity variation (<20%)  Inspite of significant RR interval change.(This implies mean LAP is kept high irrespective of cycle length suggesting elevated baseline LAP)
  2. E deceleration time (<140ms) (In long cycle)
  3. Propagation velocity in color M Mode(Vp)  <45cm/sec might help (RR interval dependent, measure in the long cycle)
  4. E/e” in a single beat by dual doppler probe (Ref 1)  > 10 indicate diastolic dysfunction that correlate with PCWP> 15mmhg (Ref 1)
  5. Finally (and curiously ) presence of AF by itself may imply significant LV diastolic dysfunction. It could be due to an increase in atrial strain and afterload of LA (ie pre A-LVEDP) (Of course, It should be in the absence of mitral valve disease)
  6. LA dimension in AF*

*LA dimension is a very good sign of chronic elevation of LAP and diastolic dysfunction in the absence of mitral valve disease. However, AF can dilate the LA making it a less useful parameter. But, it should be noted in AF both RA and LA dilate together.So,  a disproportionate LA>RA (or if RA is normal size ) could still be a marker of baseline LV diastolic dysfunction.



Reference

  1. Kusunose K.Yamada H.,  Nishio S.et al.  Clinical utility of single-beat E/e′ obtained by simultaneous recording of flow and tissue Doppler velocities in atrial fibrillation with preserved systolic functionJ Am Coll Cardiol Img 2009 2:11471156



Read Full Post »

FFR is the ultimate hemodynamic test that measures the physiological Impact of lesions. Just pass a manometer tipped wire across the lesion and note the pressure drop (with or without Adenosine) All you have to remember is two cut off values  .8 for FFR and .9 for IFR. Abracadabra . . . yes you got the answer , whether to proceed with PCI or not? It’s as simple as that. We are no longer blind to physiology to which many coronary purists often criticize us.

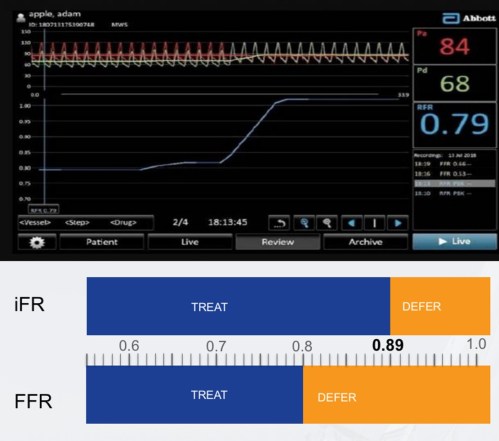

ffr ifr fame study

Coronary physiology simplified

Now , answer this question.

Is FFR heart rate dependent? If yes, how significant it is?

This simple question on coronary physiology caused the maximum distress  to  a large expert cardiologist group

Some of the answers

  1. No, it doesn’t.
  2. I think it may be affected.
  3. Yes for sure, but it’s not significant
  4. Yes, it’s an important limitation

My Answer

It has to be yes, right, however minimal it may be. My interpretation of truth in FFR is, it can have a massive influence* . (*Unless you are sure (we can never be ) about achieving maximum hyperemia or this hyperemia is the same as physiological exercise.) In fact, the whole concept of FFR lies in the fact that it should induce enough HR raise that should be used as a surrogate marker for maximum hyperemia. Ideally, like stress testing, we need to test FFR at maximum heart rate and minimal heart rate. The difference could be documented as FFR max-min. This will throw new light into the physiology of microcirculation.

Should we need to create a heart rate corrected FFR?

Yes , I think we need to do it or else should report at what HR we are reporting the FFR. If FFR falls at a high heart rate and maintains at low it implies a significant lesion. So don’t get fooled with FFR of .9 measured at an inadequate heart rate.

IFR to replace FFR : On what basis?

Meanwhile, new generation coronary flow quantification tool IFR jettisoned Adenosine and simply measure diastolic instantaneous flow at resting state. This makes a mockery of coronary physiology, without a true debate about heart rate dependence of trans-lesional flow.

Impact on clinical practice

Even as we struggle to answer the fundamental question of the influence of Heart rate on FFR, many landmark studies had been done. They have ratified FFR as the most physiological modality to assess coronary lesion. Important guidelines have been written based on these studies. No one will ever know, the true impact on the current cardiology care,  had we included heart rate adequacy /correction as an essential criteria in those FAMEd studies we hype about.

Counterpoint.

All is well with FFR.It has been tested with various heart rates.

FFR at peak hyperemia means there is no further HR rate induced potential microvascular reserve. So a properly administered optimal Adenosine augmented FFR should not bother the HR variability. (But its only theory)

If FFR is ok . . . IFR should not be ok is it not?, For the simple reason, there is no hyperemia in IFR , what is the use of knowing resting flow reserve (RFR)

Reference



Postamble with a slice of History

FFR is as old as the concept of PTCA. In fact, the original balloons used by the great Gruentzig’s * had a central port for pressure recording through which he measured both proximal and distal pressure curves to guess the significance of obstruction. After each inflation, he checked  whether both curves are drawn together which he speculated to indicate a successful procedure physiologically.

*What a stunning scientific mind the father of Interventional cardiology was blessed with, still inadequate for the Nobel committee to get convinced.

Read Full Post »

Rules of the PCI game

  • Mind the physiology. It is the new norm in selecting the lesions for stenting.
  • Now, If physiology is ok, you have to mind the Anatomy and vice versa.
  • If Anatomical (severity of block )is ok, then, you have to mind the morphology and vulnerability.
  • Finally. and most importantly mind the patient’s symptoms and clinical scenario.

So what should we do in a case of 70 % LAD with  .9 FFR ? (Still shabby looking, eccentric plaque, looks vulnerable  with a thin cap on OCT)

  1. I will stent, no doubt.
  2. I shall wait, and treat with Intensive optimal medical management (OMT).High dose statins will surely seal the cap.
  3. I will defer and watch.
  4. I will teach the patient and their family the basics of coronary hemodynamics and accept their decision.
  5. I simply leave the LAD for God to heal.

Which is correct?

All can be fair depending upon the clinical scenario.

In the ACS setting, one can’t afford to ignore these lessons.

Many would argue even in CCS setting it need to be tackled with PCI.

But isn’t also a fact, (maybe, we have been taught wrong as well ) non-flow-limiting lesions are more at risk in terms of ACS risk.

Hmm . . . then why we Insist to celebrate the concept of FFR  and its magic cut off of .75?

Do we practice coronary care at its height of confusing times ? or Am I make it appear so?

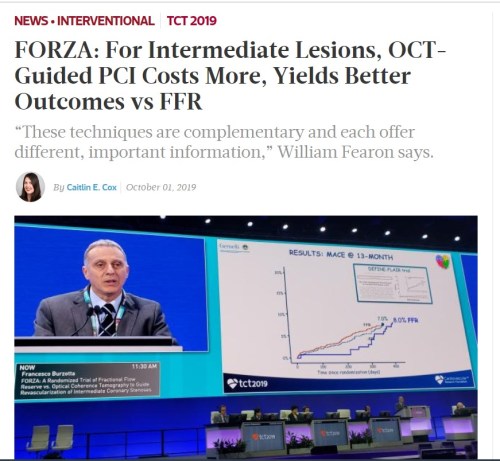

Watch this, (https://rutherfordmedicine.com/videos )It might help you to get a better answer. Its called FORZA study. freshly delivered at TCT 2019, San Francisco.It compares FFR vs OCT guided PCI





Read Full Post »
