STEMIis numero uno of any medical emergency . The risk of death is maximum in the first  hour.

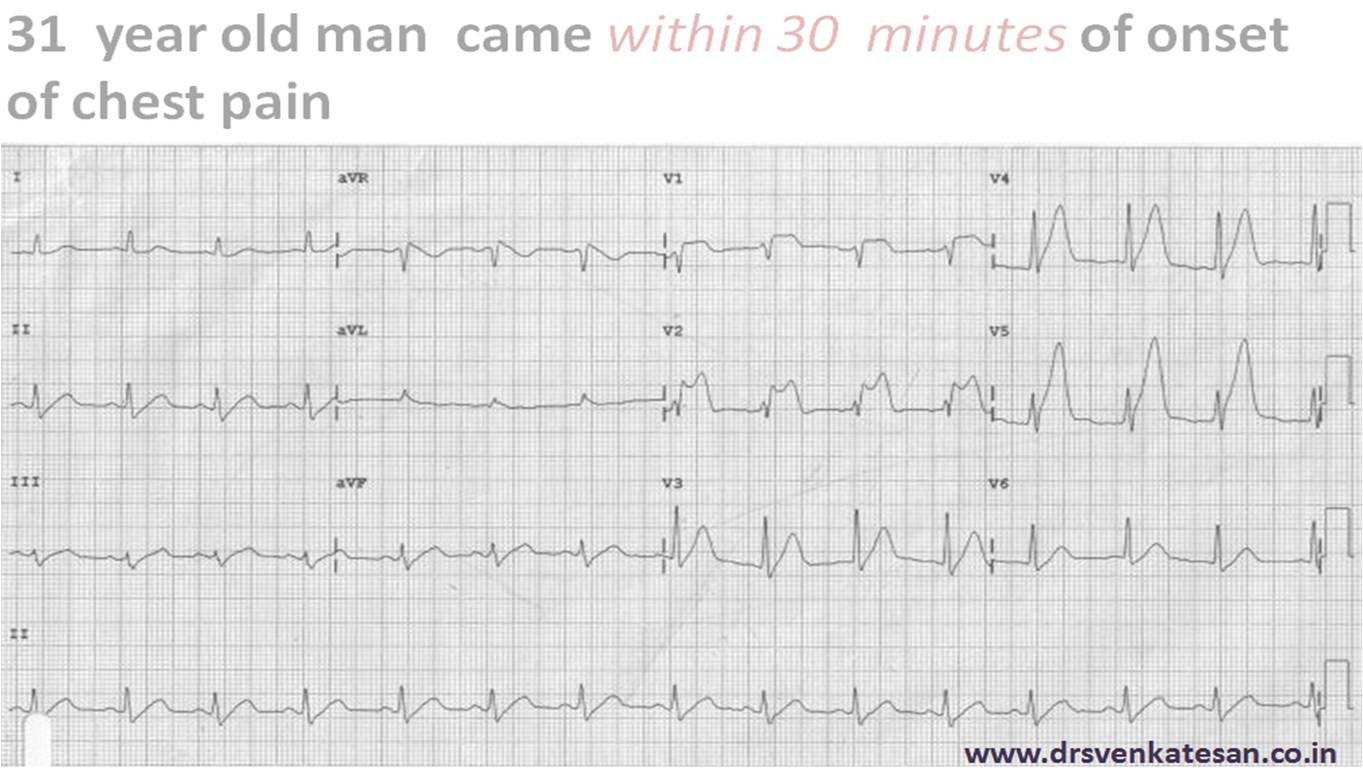

Here is a patient who presented within 30 minutes  of  chest pain.Enzyme sample was  just sent and a bed side echo  revealed a severe wall motion defect in LAD region.

What would have been  the response from a  current generation cardiologist ?

  • Alert the cath lab . Send the patient direct to cath lab .
  • This did n’t happen as we are in a underdeveloped country and the patient  is poor .
  • Should we worry about that  l ?  Not at all  . . .  He received a shot of   much ridiculed streptokinase injection which  costs 2000 Rs ( 50 dollars) in India  .

And see the result yourself !

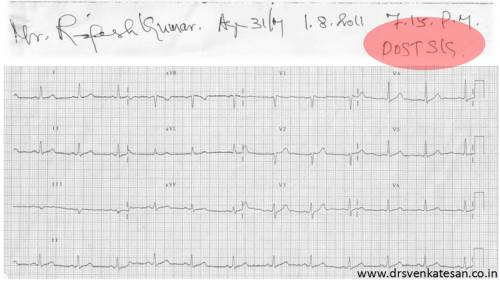

Can you imagine this man had a major STEMI just an hour back ?

 Any intervention that is done immediately has a major impact on outcome. When the patient comes to you  early within 3o minutes and  STEMI,  or  actually a TEMI  , T wave elevation MI or Hyper acute MI .

When the patient comes to you early cardiologist should raise  to the occasion and set a new  challenge  .

What is that  challenge ?

The aim should  not to be in  salvaging  the myocardium  , rather   prevent  the  event of   ACS   and   abort the MI process itself !

How is this possible ?  Can you abort a STEMI or TEMI by primary PCI ?

Since one has  to act fast , primary PCI is a likely  loser  9/10 times in aborting a STEMI  .

The best option  is  to do an intervention which can have almost zero door to needle time* .  The good old thrombolysis  administered  at the door itself pips the pPCI  convincingly with a huge cost saving as well .

This is what  this patient received. and  see the result . His angiogram  later  showed a fully recannalised LAD .No stent  was advised .He was put on high dose  statins ,beta blocker  and antiplatelet agents.

*You  can not balloon the patient on the arrival in  door steps  !  .

Final message

Do not ridicule any modality of  therapy for being simple and cheap .  They may be most effective as well .


Read Full Post »

Interventional cardiologist are excessively  talented  guys .They always  lead ahead in innovations  .The only issue is , their  enthusiasm  (   many times  overtake  the pace of science .  In the name of off label indications  they indulge   in drug and device extravaganza   in uncharted territory .

Even as we boast of practicing evidence  based cardiology   scientific  adventures  happen  without  proper  evidence  . . .   rather  we  have wait for evidence to come later .” A clear case of  cart pulling the horse “

The wide-spread of use of  second generation DES in STEMI has not been found to superior to BMS in the  EXAMINATION trial just released in ESC 2011 Paris. It failed miserably ,  when every one took  the superiority  for  granted.( Some may claim  non inferiority is  not a failure , but for a DES which was perceived a revolution,  it is definitely a failure in the  STEMI subset )

Further,  what  EXAMINATION  trial did not  address  is  acute and sub acute  stent thrombosis .Even as the DES is credited  with a dubious  record for  sub acute stent thrombosis ,   there is every reason to  suspect , in  the milieu of STEMI the thrombotic risk of DES  would increase many fold.

The  seemingly  low   incidence  of stent thrombosis with DES  in STEMI ,   in  EXAMINATION  trail  is a statistical mirage .This  trial was  neither  planned  nor powered to address the issue of stent thrombosis.

In the  ultimate  analysis of EXAMINATION ,   One could conclude   Cobalt chromium BMS,  has  cemented  its place ,  more firmly for use in primary PCI.

DES  at best ( *With all those conditions apply , Dual antiplatelet etc) can be equal to BMS,  while  BMS at any  day ,  would  casually will  win over DES without any conditions at a  huge cost advantage.

The above analysis is diagonally opposite to that of general  perception  that  emanated  from Paris  ESC meet 2011   trial   .

Please remember EXAMINATION trial did not reach its desired primary end point  !

That is  a strong point  against it  .What do you think ?

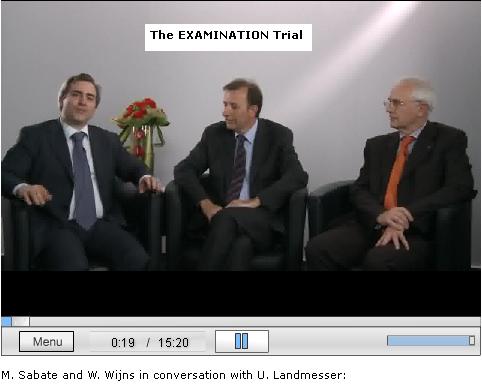

A  TV  debate on Examination  trial from EURO PCR


Read Full Post »

Moderator band is a ubiquitous structure  found inside right ventricular   cavity , often overl0oked by cardiologists. God has created no structure  without any purpose ! Moderator band has important role to play  both in physiology and pathology .

Image credit and courtesey : Whoever has created

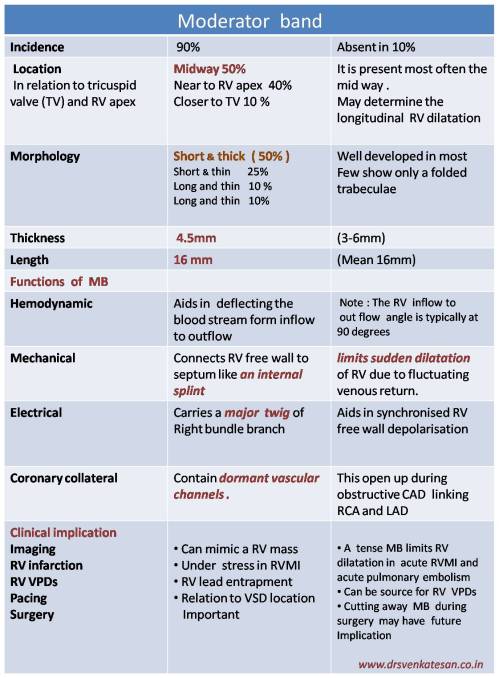

The table attempts to summarise  the features  of moderator band. The  structural and functional behavior of moderator band  in , RV cardiomyopathy , RV non compaction and arrhythmogenic  RV dysplasia is not fully studied yet  . Reference :Content is taken from various sources and with a personal input in few places.  The anatomical data is largely taken from the pioneering  work of cardiac  pathologist and morphologist  RH Anderson of  United kingdom.

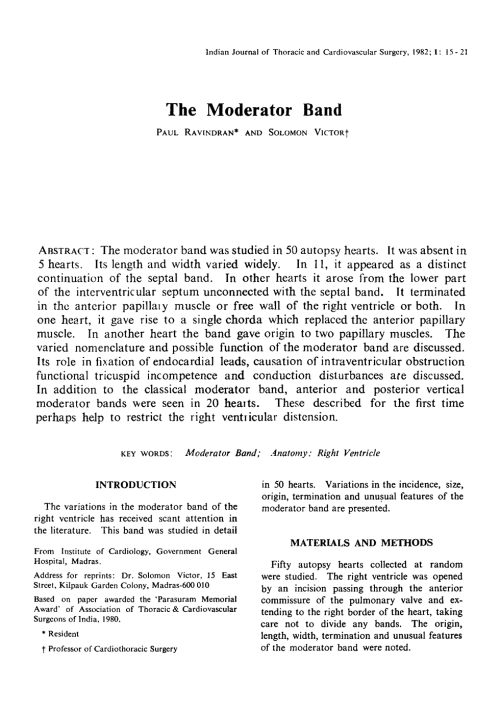

Here is an article  from my institute Madras medical college  published in Indian journal of Thoracic and Cardiovascualr surgery in 1982.

An autopsy study  on moderator band   by Paul Ravindran and   Solomon victor


http://circ.ahajournals.org/content/67/6/1268.full.pdf+html http://www.ncbi.nlm.nih.gov/pubmed/20235167


Read Full Post »

Pectinate muscles are specialized Intracardiac  muscle

  • Pectinate muscles are located mainly in the right atrium  , more  in right atrial  appendage , sparse in left atrium
  • Has muscle fibers arranged in a  comb like fashion.
  • Has less mechanical activity, no significant contribution to atrial contractility.
  • Can stretch and improve the voluminous nature of right atrium
  • The pectinate muscle  folds act as RA volume reserve  during adverse loading conditions . It helps RA dilate with out much wall stress.
  • Rarely it can be a cell of origin for focal atrial tachycardia

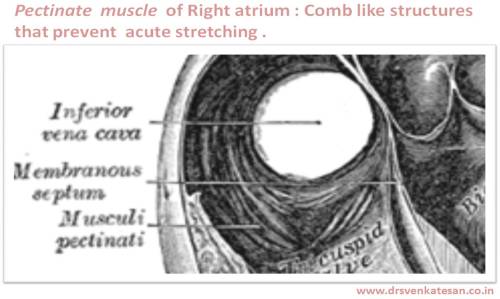

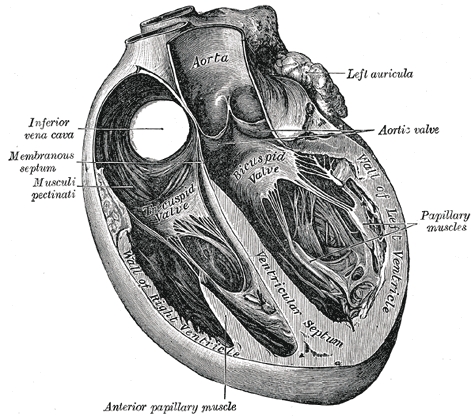

Image Source : Greys anatomy

The concertina like effect of pectinate muscle .

The atrial infolding increases the surface area of atrial chamber at times of dilatation , like  the music instrument .So,  these macro  folds ( like intestinal villi )  help overcome the  constantly changing volume status of right atrium.Since the  variation  left atrial blood flow is  not that much ,  the pectinate muscles  are not well developed  in the left atrium.

The same rules would apply for  why  there is excess  trabeculations  in right  ventricle  than  left  ventricle .

Read Full Post »

This  happened  in one  of the cardiology  work shops  I  recently attended ,  which  beamed  live cath lab procedures from across the  country.

An   interventional   cardiology  team  in a  bright sky  blue  suit was preparing a  patient for   graft angioplasty  in  a degenerated  SVG graft to left circumflex  . The patient had apparently had  CABG  few years ago  (LIMA to LAD still functional   )   . His LV  EF  was reported   to be  40 %.  The procedure was about to begin. The femoral artery was  being  cannulated . . .

As the audience  were encouraged  to ask questions.  A young cardiologist wanted to know what was the indication to open up the graft  / And what was  his symptom ?

“Do not ask such silly question”  . Prompt came the reply from  one  of a   senior interventional cardiologist from within the cath  lab. He further said  such questions can  not be entertained  as the   forum is meant for tips and tricks to cross a degenerated vessel graft .  When he insisted for an  answer , the entire panel  joined the  ridicule and  the questioner  quietly went out of the hall !

What  do you infer from such reaction?

What makes this question silly ? Why the cardiologist got annoyed and amused ?

This odd  reaction  implies  ,  the  cardiologist  has  something to hide or has guilt of   doing inappropriate procedure.

Such is the transparency in  cardiology workshops  transmitted  live all  over the  country  imagine   what  one can  expect in regular cath labs .

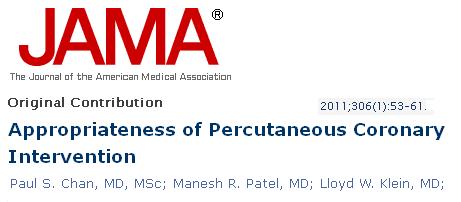

No doubt  JAMA has come out with most  important article  for us. http://jama.ama-assn.org/content/306/1/53.abstract

Live  workshops are not simply to train our hands . It is supposed to teach  us   the “what is right” and “what  is wrong” ,  “what is good” and “what is bad”  for our ailing patients. The senior  cardiologists who administer these workshops  should realise this fact. Very often a bad example is set .   When asking for  patient’s  true symptoms   looks  silly  for us  . .  .  guess where our profession is  heading for !

Read Full Post »

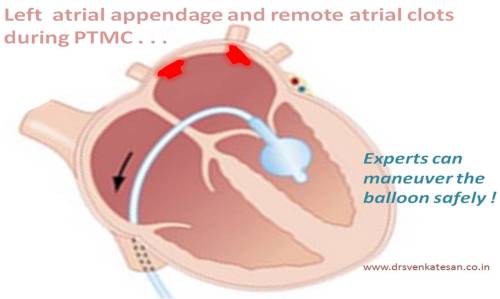

Left atrial clot is a  traditional contraindication for performing PTMC.  This rule was formed in the early days of PTMC.

PTMC  recently celebrated  its 25th birth day .  In India  it was  first  done by   GB Pant hospital by  Kallilulah in early 1980s.

Now most  centers  do it  routinely   like a diagnostic angiogram.  Even fellows can do it  with ease. (If allowed !)

We have learnt  the nuances  of septal puncture , maneuvering the transpetal needle and  the balloon  catheter  within the LA in the last two decades.it is also becoming clear  how the IAS anatomy  behaves in various LA and RA sizes  and pressures . So , the experts (Read again         . .  .experts !)  have relaxed the rule of the PTMC game !

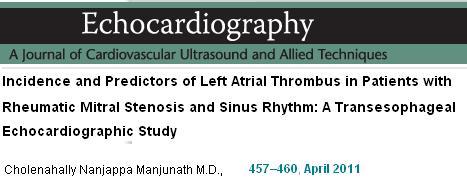

PTMC  can safely be  done  if the LA   clot is confined to  the appendage  .Even clots  abutting just  out of LAA appendage  may  be tried if you have the expertise  akin to  Dr Manjunath and  his team  from the garden city of India .(Jayadev  institute ,  Bangalore probably has the largest  talent  pool for PTMC , In fact  they have  classified the LA clot according to size and location .)  Read the reference below.

If a cardiologist  is allowed to meddle the LA  filled with clot ,  why not a surgeon  do  a CMC   in the presence of LA clot ?

I believe old generation surgeons did it. I am told few surgeons  have specail talents to deliver LA clot off pump and complete a successful CMC   with lateral thoracotomy .  Fresh un organised clot can be flushed out of LA .
But currently doing a CMC  with LA clot is considered unscientific . Further  surgeons  often consider CMC as an inferior Job .They love to go on pump  and replace mitral valve with a  slightest provocation .  It need  be realised a half functional native  valve  is at any time   better than an artificial valve . In  developing countries    CMC  would make lot of sense when we confront with small LAA clots . One can do 5 CMCs at the cost of one mitral valve . Surgeons comments are welcome.


What  will happen  if LA cot gets accidentally dislodged ?

A stroke  or a systemic vascular event may occur  , but it depends upon the embolus size .Up to 2mm clot  debri can easily cross the cerebral  microcirculation and escape a major stroke.Showers of micro emboli can cause a lacunar infarct or vascular dementia.

By the way ,  I am curious to know what will happen to  these  clots after successfully  opening the mitral valve by         PTMC*  ?

PTMC can not be claimed as a cure  as long as the patient harbors the clot in a precarious location . So it  needs intensive oral anticoagualtion (or even heparin ) and many times we have observed these small clots disappear .

*Logic would  suggest an LA clot  with a  closed  mitral  valve  could be  much safer ! many times we have seen large LA clots struggle to get past the mitral valve because of critical stenosis.

A video of mobile LV clot from our institute . http://www.youtube.com/user/venkatesanreddi#p/u/40/zHdPtm32YZQ

Here there is no chance of PTMC ,  however good you are !

Future innovations

  • Distally  protected PTMC
  • Either you should trap it and remove it or desiccate it into minor particles.
  • Basket in root of aorta to capture  the clot in transit   may be a good  concept to try.

What  happens to LA clot following long term oral anticoagulations ?

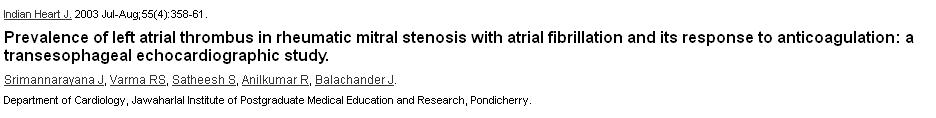

Most disappear according to a study from JIPMER , Pondicherry , India .


Excellent PTMC  data   from Pakistan and Sudan

If you want to learn about PTMC  please note  the experts are not  in Cleveland clinic  or  from Great ormond  street

they are from the remote third world locations .



Read Full Post »

A stent missing a  lesion after a PCI  is referred to as geographical miss.

It can be metal missing a lesion ( in BMS )or a drug missing a lesion  with DES.

Geographical miss is  obviously  more important with DES ,   as both metal and drug can miss a lesion ! (A double miss !)

Read a related article in this site. Geographical Miss : Difficult coronary Runways . . .

What are the types of  geographical miss ?



Longitudinal miss is more of a technical failure (Interventionist error ) While  axial miss  is  often a  design or concept failure .

Longitudinal  miss results in edge lesions ( either  stent inflow or outflow lesions) .Axial miss result in discreet  in-stent lesions .

Please remember ,  axial GM  is  much more common .

What is definition of  axial geographical miss ?

Inadequate inhibition of intimal hyperplasia within the region of stent .

Mechanisms of  geographic miss in DES era

  1. Stent  vessel diameter mismatch  (Less drug vessel contact)
  2. Low drug dose -Pharmacological error
  3. Stent radial strength more than the desired force per unit area . This excess  stress  effect  might interfere with drug release.
  4. Some degree of vessel injury is needed for drugs to percolate. (A very smooth deployment may not release the drug  properly )*

*A modern day cardiologist  is expected not only to deploy the stent properly , he has to make sure drugs reach the target cells . What an  irony  cardiology can be  .  . . a  too gentle  PCI  can show up a  negative face ! when we want to poison selectively  the atherosclerotic plaques .

What is the incidence of GM ?

In  STLLR trial which looked specifically the issue of GM  the incidence was very high ,  an astonishing 65 %

How to recognise it ?

Longitudinal miss can be identified by conventional angiography.

Axial miss is very difficult to diagnose . IVUS,ICT will  help.

Many times it is an after thought  when patient presents with  an event.

What can we do once we recognise it ?

Unfortunately nothing much can be done to reverse the miss especially the axial ones.

longitudinal miss can be corrected by a over lapping stent .(Still ,  we do not know the implication of double metal doses  dragging an edge of lesion !)

Can  “Geographic miss”   be termed as  a failed PCI ?

Clinically , technically , logically and morally  Yes .

But  practically  “No” ,  as GM  takes much longer time to manifest as a clinical event  ,  by then , no one   would  really attribute  the event as  procedure  related  . And of course ,  we have numerous other  excuses to convince our patients.

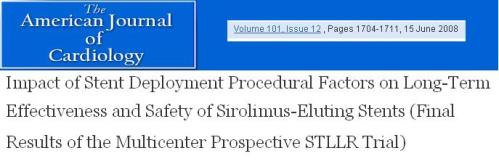

The link to STLLR  trial which gave us the startling data about GM .


Read Full Post »

Medical science is  nothing ,  but trying hard all possibilities. Most innovations die .Only a fraction will survive .

That does not mean we should not try ! The greatness is in accepting the failure.  The wonder drug which was an analogue of human atrial  naturetic peptide    (BNP)  Nesiritide   , died a peacful death on July 7th 2011 .

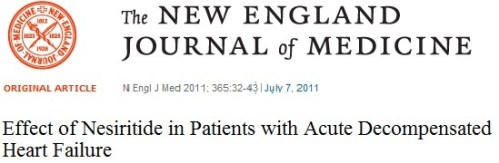

Long before , in year 2005 ,  Eric Topal in a hard hitting  Editorial  of  NEJM  wanted to hang this drug .

But it was a case of prolonged  death sentance .


Should we  pity with the drug companies  and forgive them for delaying it’s  exit ,  enable them  recover the  cost involved  .

Meanwhile , Nesiritide might have died ,  the  concept of  BNP analogues may need to be explored further.

Read Full Post »

Here is a  video recipe  !

Please click here to  see more videos from my you tube site

Read Full Post »

How do you tackle  In-stent restenosis  (ISR) ?

  1. Deploy another BMS
  2. Use a third generation  DES
  3. No . . . first  generation DES(Paclitaxel )
  4. Consider Plain balloon angioplasty.(POBA)
  5. Refer for CABG.
  6. Fall back on medical management.(Ingloriously  referred to  as  “No option” patient !)

Answer:  Please  note , there is no single response answer for this question .

Instent restenosis (ISR) is   commonly seen with BMS .This is primarily because  we are busy blaming DES  for stent thrombosis  and we do not want to give a double blow to DES .There is a  significant population  roaming with ISR  involving  DES .  BMS is in vogue for nearly 2 decades, hence it is natural to see more of it.  In due course ,  DES  is expected to catch up with BMS  and would lead in ISR as well .

The issues in PCI for ISR

Though any of the above 6 strategies may be appropriate ,the urge to put another stent within the IRS ,  prevails over all other options in most centers. This is more off an Interventionist talent  show off  !

Please remember , the common  principles  must apply in all patients before an PCI  . Simply stated , this  principle involves  assessing  symptoms, residual  resting  ischemia, myocardium at risk  during stress, viable muscle mass etc .Lesion characteristics  should come last in the work up. ( A cardiologist  should not  report  a coronary angiogram  , if   does not  not know  basic clinical parameters.)

It is  good  to have a  rule  that  “reserves  intervention”  for ISR  only if the  patient  has refractory angina.

Can you promise  relief from dyspnea

Contemplating  PCI for  patients with dyspnea as the main symptom is really tricky one.Unlike angina ,  dyspnoea  can be attributed to so many factors other than coronary blood flow.(Apart from LV EF , Iscehmic MR,  A transient diastolic dysfunction , lung function , volume status, renal function , physical conditioning etc)

Opening  ISR in the belief it would improve LV function is highly questionable even if viability is documented.

What is the most important step in the decision making prior to PCI for ISR ?

* Most important step  in ISR management is  probably  spending  sufficient time ,  involving  experts ,  ” democratically  debating”  the indication and techniques  in your institutional cath conference.

Once you document the necessity of intervention* The following things  are possible .

  1. If  the patient has diffuse in-stent stenosis , especially  the  proximal ones or that  involves  branch points,  it is wiser to refer  them for CABG.
  2. Discreet and focal ISRs can safely be attempted for repeat PCI.
  3. BMS or DES  ?  This  is  debated. Current preference is to use  a DES. (Many feel ,first generation DES -(Paclitaxel)  scores over Everolimus in this situation )
  4. Is POBA  possible for IRS ? Can a balloon do a job where a stent has failed ? . No  body is trying it .Many Feel guilty to  do it .  POBA for IRS is a failed concept without even trying it !  One  way of reasoning  is IRS occurred  only  because stent was  never indicated in the first place  in that  location  and a POBA would have been the choice in the initial attempt itself .So let us not make the second error !  ( May be , if  Gruientzig is alive today ,  might have  used  POBA  for ISR very effectively ! )

Issues for which  we will never ever know the answer !

In future any of the following combination of  stents  will occur in tackling ISR.

  • DES covered  BMS
  • BMS covered DES
  • Two BMSs
  • Two DESs
  • Paclitaxel covered Everolimus
  • Everolimus covered Cypher.
  • Overlapped DES and BMS
  • DES covered beta irradiated IRS
  • Rotablated BMS (Yeh metal crushing !)  followed with  DES jacket !

How does the two metals ,  two drugs in various combinations interact with  the tender coronary  endothelium ?

Endothelium is an endocrine organ. It has  to secrete as  many pro and anti homeostatic molecules (Nitric oxide, endothelin etc).This has to be  kept in mind when we develop newer and exotic devices. Of course ,  we claim our  aim is primarily  to provide  relief  to  our ailing patients , but, as things stand today  , there is a distinct risk of  converting human coronary arteries into corporate playgrounds !

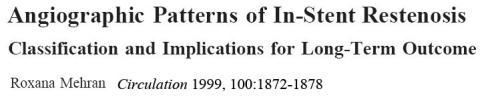

Reference :
