* Obfuscation:  hiding of intended meaning in communication, making communication confusing, wilfully ambiguous, and harder to interpret

This world can not be a perfect place and  it is foolish to expect the same !   What is published in medical literature is at best , an abstract thinking  of an unfinished agenda . Still public think  science is   . . . what doctors say ! They feel doctors can not simply watch a person  dying. They want us  act like  God. This is  how medical men became Demi-Gods  by default.

Here was a big opportunity . Who exploited it ? Obviously the greedy corporates  who embarked  on a dirty journey to en- cash this trust  and fill their coffers .This is the foundation  on which the  basics of medical market economy rides !

It is an un-pardonable on-going deceit among  modern human civilization . It has  spoiled  the trust between the patient and doctor and  probably  irreversibly  contaminated  in recent decades !

There are very few positives  though,  with occasional noble medical  souls (Like  BMJ,Lancet )   trying to keep the sinking ship afloat !

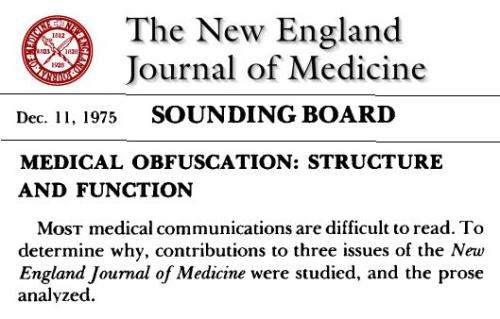

This sounding board article (Now we rarely  get to see )  from NEJM way back  in 1975  exposes a  shocking revelation  politely . Now, 40 years after ,  the importance of such article has grown  many fold . We are witnessing  every day ,  medical scientist break  stories ( Yes  . . . it is story )  in general media  with  absolute academic cowardice !

We expect more such  face bashing articles from NEJM . It would definitely  make   immense  good  for  our profession  which needs it  desperately !


I’m linking the original NEJM article ; Hope it does not violate copy right !


Read Full Post »

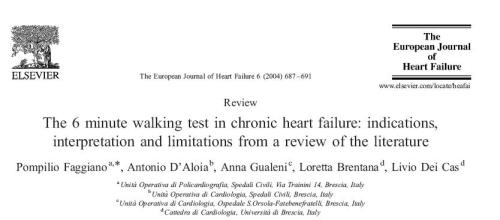

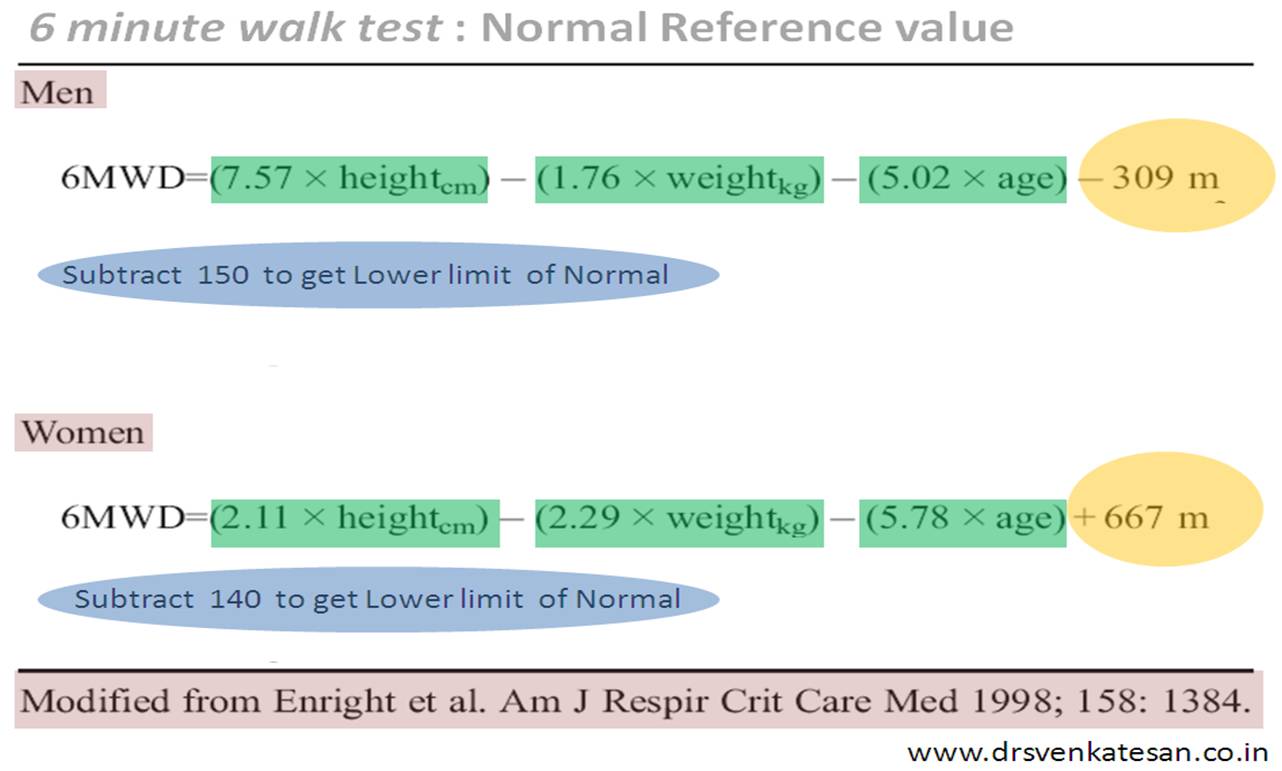

6 minute walk test is the simplest of all functional testing in cardiac evaluation . Though  walking  is  a routine day to day motion ,  it is  essentially  a hemo-dynamic stress for the  heart ,  especially so for an ailing heart . Even though  it appears  simplest  of all investigation  there are strict guidelines  available for performing  this .

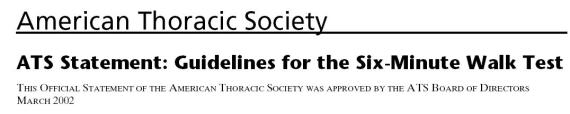

It is  surprising  American thoracic society  has come out  with a  specific guideline for this .Many of us  are not aware of  existence of such guideline   ,  hence this post  , with courtesy of ATS I am  giving a link.

    Guyatt G. H.,Sullivan M. J.,Thompson P. J.,(1985)  The six-minute walk: a new measure of exercise capacity in patients with chronic heart failure. Can. Med. Assoc. J. 132:919–923.

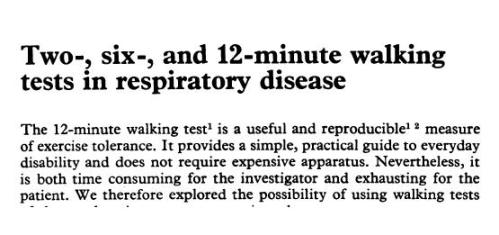

Butland R. J. A.,Pang J.,Gross E. R.,(1982) Two, six, and 12 minute walking tests in respiratory disease. B.M.J. 284:1607–1608.

History and genesis of the concept

It was originally used in COPD in 1976 with a 12 minute walk .Cardiologists abbreviated it to 6 mts for their convenience.

McGavin CR, Gupta SP, McHardy GJR. Twelve minute walking test  for assessing disability in chronic bronchitis. Br Med J 1976;i:822-3.

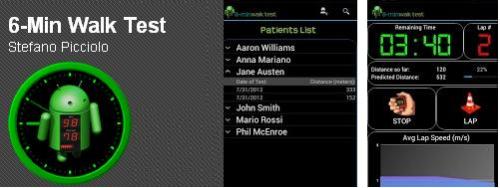

In modern times we have an Android application  for 6 minute walk test

Read Full Post »

This article   provides  you every thing  you  want to learn  about ASD device clsoure .The anatomy , the art of doing TEE in cath lab etc.Do not ever shy away from lesser known journals .It is simply amazing  to find  hidden treasures .Thanks to  Mr Tim BernersLee  invenor of the Internet !

mexican cardiology journal


Sample this arricle



Read Full Post »

Even though cardiologists consider themselves master of ischemic heart disease , their collective clinical acumen is  put into  acute stress test   when they  confront  a patient with dilated LV and severe  LV dysfunction.This is not  a  rare situation  in clinical cardiology we stumble upon such instances often .Most of them are conferred a  tag  of DCM .

The differentiation from ischemic  vs idiopathic or primary muscular is not a  wasted academic exercise  , since   ischemic  DCM  may get reversed with revascularisation .We have  various  tests to differentiate  ischemic from idiopathic like CAG,MRI, 3D RTE, etc . Still common sense would tell us   95 % of times we can  differentiate ischemic DCM from non ischemic by asking  two critical questions  in the  bed side  echocardiogram

  1. Is there a regional wall motion defect ?
  2. Does all 4 chambers of the heart is enlarged ?

Idiopathic DCM is primary disease of muscle hence  the cardiac   muscle as a  whole  fails  ( We know they are a single  folded  muscle sheet )

Since  Ischemic DCM  primarily affect left ventricle and left atrium  RV,RA enlargement  are terminal events.

* Please note the traditional dependence on CAG to  diagnose  ischemic DCM is fraught with a risk of missing small vessels  induced  DCM,

*** If atrial fibrillation is present longstanding it can dilate both atrium but still RV will be normal  in sized in  ischemic DCM until very late stages

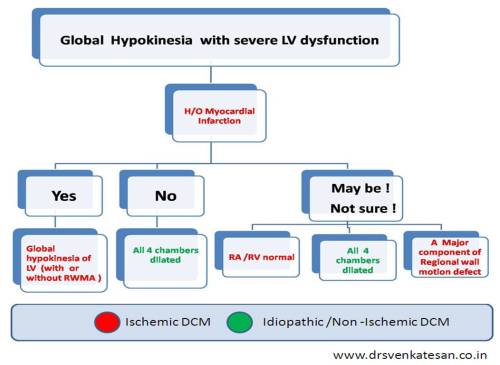

Here is a  20  second flow  chart  to differentiate ischemic  DCM  from idiopathic

ischemic verses idiopathic dcm

Read Full Post »

If you are a doctor  and  whatever  be your specialty   . . .  if you do  not read this article  and understand the nuances  probably you  will not become a   complete medical professional !

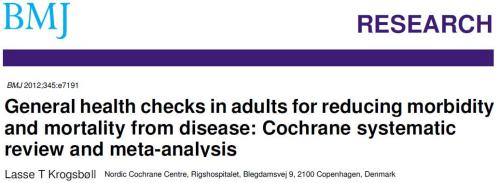

Master health check up futility general health check

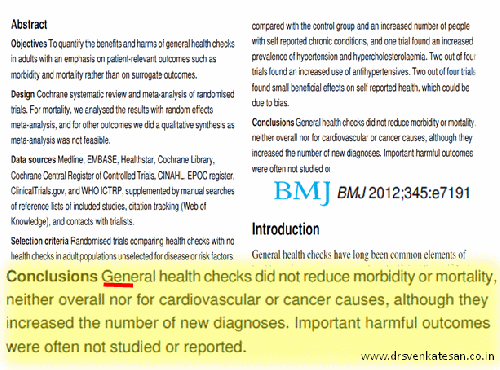

master health check up geenral health checks bmj british medical journal cohcrane nordic


While  BMJ  struggles to  propagate  a vital truth , this  banner on a  Indian  high way   tempted the public  to go for 64 slice CT scan   . . .just like that !

Master health check up 2

Final message

Accruing medical knowledge and skills is only one aspect of medical profession. Applying it properly in our patient population is entirely  different ball game . Let us be disease curers and not disease hunters . This is important because disease  hunting is  a dangerous  game ,  where victims can be innocent  bystanders. This  is exactly same thing  Hippocrates  refered to as  Primum non nocere  1000 years ago.  It  has required  a huge statistical study to RE-INVENT  this universal fact !

Read Full Post »

The  major  issue of contention is fear of conversion of pure ischemic stroke into hemorrhagic stroke .

But here is a catch if you worry about that  . . . who will worry about recurrent emboli from heart ?

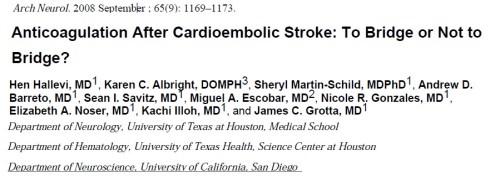

anti coagulation following cardio embolic stroke

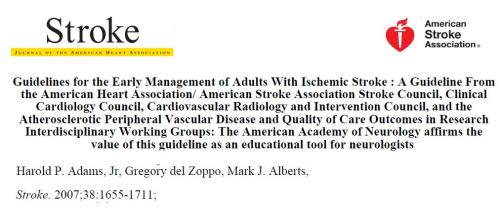

aha stroke guidelines 2007

aha stroke guidelines

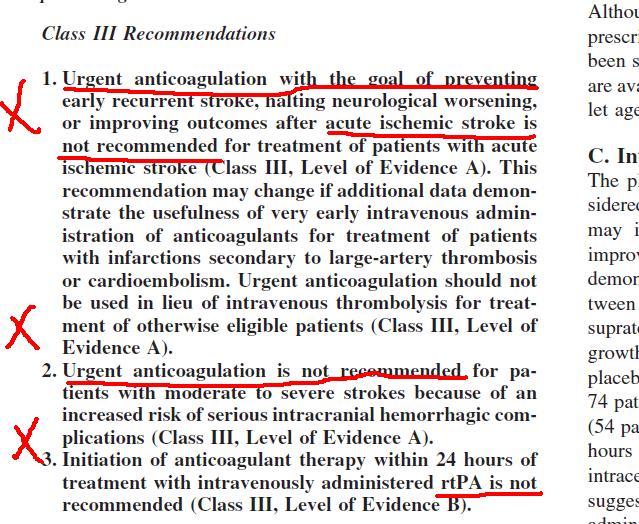

Recommendation for heparin

aha antiplatlet agent

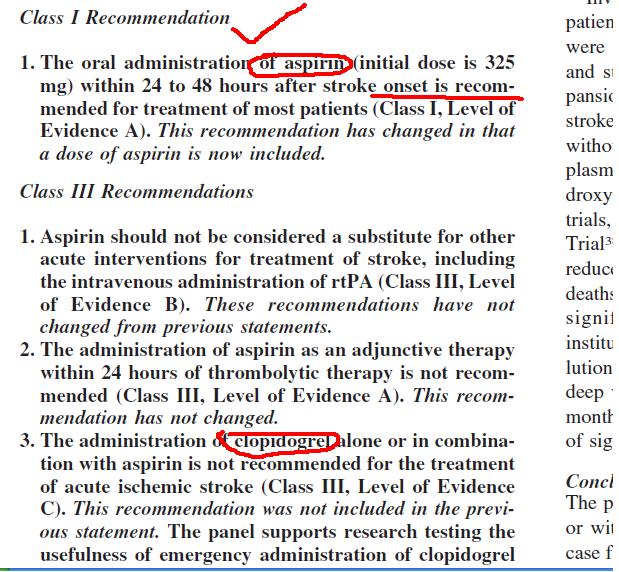

Recommendation for anti-platelet drugs

I think  the 2007   stroke guidelines are the latest .Even after going  through the guidelines  I am not really clear about the answer for the question posed in this article.

One more thing   I  (mis) understood was  ,  In acute stroke thrombolysis seems to be safe  . . . Heparin seems to be dangerous ?  Is that true ?  It defies logic for  me !

One possible explanation is thromolysis is a emergency single shot salvaging  process . While prolonged heparin will ooze blood into Infarct ! This is exactly is the reason  in   tPA   should not be   followed up with heparin  in acute strokes.(unlike STEMI  where a follow up heparin is a must )

Regarding prevention of recurrent emboli , we need to bother about whether it is predominately platelet rich or RBC rich

Readers may contribute to find the exact answer !

Read Full Post »

LVH is   a common ECG  finding .Classically  it should produce tall  R waves and deep S waves in V1-V3 .

But it is well known deep q waves also can occur in LVH  especially in severe  forms of pathological LVH.


Why the septal R disappears in some is not clear .( due to  myocardial dis-array ? )

LVH  results in  secondary ST /T  changes either inherent or associated  conduction delay. (In-complete LBBB )

Final message

Errors  mistaking LVH for STEMI  is more common than we realise . Propagation of the  term  Q -LVH with ST elevation  will help  reduce this common error in coronary care units.


Read Full Post »

A 60 year old man with chest discomfort and severe breathlessness  and  blood pressure of 160/110 was  wheeled into CCU. A diagnosis of  acute anterior  STEMI was made and he  was about to be  thrombolysed . Since  his blood pressure was high they were waiting for it to come down with IV  Nitrglycerin

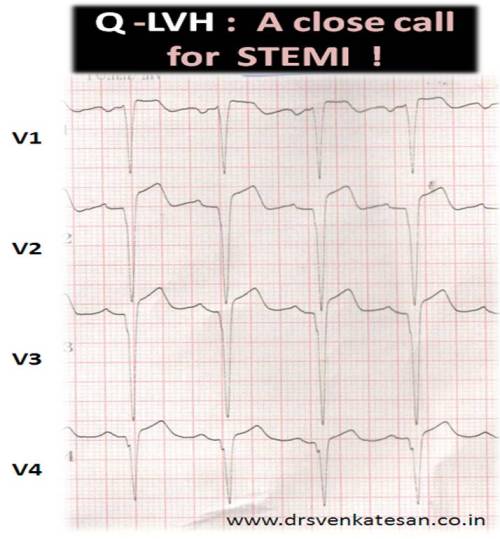

I was called to see this  patient  .Here is his ECG .


Though   ECG  suggested anterior  STEMI  , I  was  fairly  convinced  it  was  in fact  LVH and  incomplete  LBBB.

I confirmed with the  patient  about the onset of symptoms . It was primarily  breathlessness and only a  vague discomfort .Meanwhile , the troponin came as positive and CPK MB    was  normal. The combined troponin  positivity  and ST elevation  almost confirmed the STEMI ,  and  the  urgency for  thrombolysis was  intensified . One resident suggested  an  emergency PCI.

My self ,  in spite of  being a cardiologist was isolated among the physician team .  I  had to  urgently  prove to them it is indeed  not STEMI !  I did a bed side echo and showed  the  physician colleagues   a vigorously contracting  hypertrophied  left ventricle  with a EF of 68 % . There  was  negligible wall motion defect  . . .  if at all any !

They were still far from convinced ?  They  were  sort of  amused .There is   ST elevation ,  there is  troponin  positivity. . . what else you want  . . . they seemed to ask  ?

I asked them  . . . How can an  acute  extensive anterior   MI contract so well ,  without a trace of   wall motion defect ?

It took me considerable time and effort  to  convince them  that the whole thing was not a STEMI.  Finally they agreed .It was  a simple LVH with secondary ST elevation  due to incomplete  LBBB .  Troponin elevation  simply  represent minor myocardial  injury associated  with hypertensive  LVF . This  patient was discharged within 24 hours  in perfectly stable  condition . Since he had mild elevation of creatinine and was  sent for  nephrology  work up.

Final message

LVH with secondary  ST elevation in V1-V4 is a common situation that mimics  acute STEMI . Cardiac failure can result in non ischemic troponin  release .  Acute medicine is  an unique art . Some times it demands all your senses to be on alert mode . Realise ,  in the above case ,   in spite of the   the classical   triad of  chest pain ,    ST elevation , troponin positivity  it  almost led to a wrong diagnosis of  acute myocardial Infarction .

After thought : What  if they had thrombolysed this patient or taken for a PCI ?

When  the clinical suspicion is high and  circumstantial evidence  point to an ACS   ,   this error can be  justified . After all ,  5 % of   famous ISIS  study population were not suffering from STEMI  but got thrombolysis !

* One real possibility in this ECG is  old AWMI with re-infarction  or a dyskinetic septum lifting the ST segment .But both were excluded by the rapid bed side echo.




Read Full Post »

As I expected ,  my earlier algorithm “An Idiot’s approach to tachy-arrhythmias” has  elicited  mixed reactions  .Some  EPs calling it a dud while few  physicians termed it awesome . Here is  a follow up .

Heart rate of a tachycardia is the most neglected parameter by physicians .  They are often seen spending  hours together for decoding  arrhythmia , splitting the brains   for P wave  location , VA conduction, Fusion beats etc .Finally they end up  either administering  Amiodarone a broad spectrum anti arrhythmic agent or DC shock.

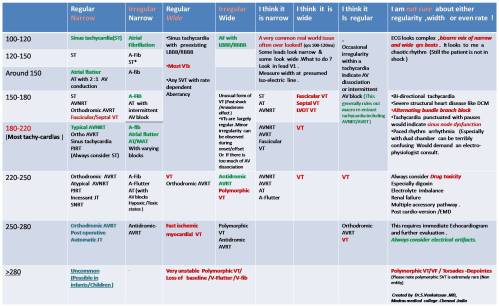

Here is an unusual algorithm  for arriving at a diagnosis in all tachy-arrhythmias  based only on heart rate and the width of he qrs complex.

(Click over the table for high resolution image )

approach to cardiac arrhythmias narrow qrs vs wide qrs brugada wellens criteria

General principles in diagnosis of tachycardia

Narrow  qrs tachycardias.

90 % rule : If regular It is sinus tachy if irregular it is A-FIB . Take some efforts to r/o sinus  tachycardia . (In children and young adult it can be extremely difficult at times )* Please note : Sinus tachycardia can show some irregularity due to sinus arrhythmia and  frequent  APDs and JPDS . Further at  fast rates P may fuse with T it should not be confused with  A-fib .

Wide qrs tachycardia

Common things  are common , if  you sight a large animal with a huge trunk  in a Kenyan safari ,  it is most likely to be an  elephant and not a Dinosaur !  Please diagnose VT  when you encounter wide qrs tachycardia by default especially when the BP drops  !

  Management issues

It  would be  foolish to split our heads for decoding an arrhythmia when a patient is unstable .Any hemo-dyanmic unstable tachycardia needs DC shock . (Synchronized will be better unless it is dire emergency )There are very few arrhythmia where DC shock is contraindicated   ( MAT/Dig toxicity/Underlying sinus node dysfunction )

Only if the patient is hemo-dynamically  very much stable   the  physicians  have enough time to  confuse themselves  and the real  ordeal begins .Please remember  the 5 arrhythmias  constitute 98  % of all known tachy-arrhytmia . So where ever  you practice ,  whether  in remote Nigerian village  or  sophisticated  Cleveland  university hospital , when you are  confronted with a tachycardia  the diagnosis  should be one among the  following  five  !)

  1. Sinus tachycardia .
  2. AF/A-fib
  3. Atrial tachycardia  with  or without blocks
  4. ventricular tachycardia /VF
  5. AVNR/AVRT with or without aberrancy

All  other tachy-arrhythmiaa  are  largely  academic !

Regarding  drugs

Knowing the mechanism of  arrhythmia genesis  is less important  at bed side . They are  triggered , sustained, and maintained by either functional or structural component .Ionic basis operates in every arrhythmia  , but it is the anatomical  substrate that maintains it .This happens in only diseased heart.The only point worth remembering regarding mechanism of arrhythmia  genesis  is ,  automatic and focal tachycardias  will not respond to DC shock . All other can be termed some form of re-entry . Micro reentry  for all practical purposes behave like  triggered  activity. Ischemic and electrolytic VTs are primarily ionic based and often polymorphic.Structural VT are commonly mono-morphic. Any VT just prior to degeneration to VF become polymorphic

Every patient with cardiac arrhythmia should be checked for hypoxia,acidois , electrolyte defect or exposure to any  pro arrhythmic drugs. (The commonest  cause of tachycardia in any  IMCU , is inotropic induced (dopamine /doubtamine ) tachycardia .

We  have  5  pharmacological options

  1. Blocking  adrenergic  receptors(IV Esmolol, Metoprolol)
  2. Blocking calcium channel (Dilitazem,Verapamil)
  3. Blocking potassium channel  (Amiodarone  ,Sotolol Adenosine  to a cetian extent )
  4. Blocking sodium channel . ( Procainamide , Lignocaine (Wonder drug almost forgotten now ! ) Flecanide Mexilitene etc)
  5. Digoxin ,Adenosine  magnesium are special  anti-arrhythmic  agent which  has very useful role in certain specific situations (Magnesium -Torsades/Polymorphic VT / Adenosine in LVOT/RVOT VT etc)

General principle is ventricular arrhythmias  are blocked successfully  by sodium or potassium blockade  Atrial and functional tachycardia are blocked by calcium or adrenegic blockade  .Of course,  there would be  some degree of overlap  when the arrhythmia  origin  hovers  around the junction  on either side of the AV  ring . This is basis of verapamil sensitive VT .Clusters of  calcium  channels are scattered  in the junctional  region

Refractory tachycardia

  1. Consider ablation  in AVNRT/AVRT
  2. ICD +Drugs  in VT
  3. Ablate and  Pace(Some A-fibs)
  4. Ablate and ICD (Some  incessant VTs)
  5. Surgery in minority

In AVNRT/AVRT 90 % success can be achieved  in most EP centers .VT ablation  is still a complex process  with  success rate around 60 % ICDs  are indicated in all recurrent VTs except incessant forms .(Where the battery will deplete within a month !) Surgical cure (Maze etc  ) is possible in selected few while undergoing mitral valve surgery.Contrary  to the modern scientific  mood ,  I can ay with conviction most A-fibs can be managed medically except a fraction will require pulmonary vein ablation / isolation .

Final message

Mastering the field of of  cardiac  arrhythmias ,  though  appear a daunting task ,  it does not  require   immense  sense  to understand real world problems are  only a  few and can be tackled in a simplistic manner !

Read Full Post »

Heart rate of a tachycardia is the simplest of all  . . . but   neglected parameter by physicians.  They are often seen spending  hours together for decoding  arrhythmia , splitting their brain for locating P waves ,  VA conduction, Fusion beats etc Finally , most end up  either administering  Amiodarone a broad spectrum anti arrhythmic agent or a DC shock  without arriving at a correct diagnosis.

Here is an unusual algorithm  for arriving at a diagnosis in all tachy-arrhythmais  based only on heart rate and the width of  the qrs complex with acceptable accuracy.

(Click over the table for high resolution image )

approach to cardiac arrhythmias narrow qrs vs wide qrs brugada wellens criteria

Caution :

The above table is  an extremely simplified approach for tachy arrhythmias. Not applicable for scientifically inclined . But in my personal opinion ,  in an emergency room  pure science matters less !

Read Full Post »
