Often general practitioners refer  ECGs  with abnormal resting  ST/T wave patterns  to cardiologists .

Following are few of them

  • ST elevation
  • ST depression
  • T wave inversion
  • Tall T waves
  • A relatively uncommon  finding is  a flat ST segment  , which  is discussed here.

The commonest( benign) abnormality   is  T wave inversion  in women and tall ST /T waves   reflecting  early repolarisation  pattern in men. A flat ST segment is an occasional finding in general population.

ST segment is inscribed  during the most important  time  of  cardiac cycle.This is the period the ventricle is doing its prime function , namely ejecting the blood in systole .Hence it is subjected to maximum stress . During times of ischemia  ST segment  gets elevated or depressed depending upon the severity of ischemia. For the same reason , even  subtle changes in this segment is  frowned upon by cardiologists. Most of them would receive a EST.

It is ironical to note  , few normal people  show almost silent electrical activity during this  crucial  phase of   their  ECG .ST segment is often  a flat line  in them . This is a ECG of a women referred as CAD. She was asymptomatic . Echocardiogram  was normal . She was asked to do  a EST.

This asymptomatic women was refered for ECG opinion

The peculiar thing about T waves  are ,   a 10 mm upright  as well as  5 mm inverted T wave ,  both can be normal. So .  there is no element of surprise  to note absent  T waves  or a flat  T wave  to be called as normal .

The curious case of lost ST segment !

* T waves are recorded when K+ efflux occur rapidly out of cells . Hypokalemia  can be an important cause of flat T waves.

It is still a  mystery to me  why some people inscribe a tall T when  potassium comes out  of cell and  an equal number (Esp women)  record a down ward T wave  for the same event !  I wish  I get an answer  to this  lingering  question from  any of the readers !

Is a flat T wave represent  a T wave in  transition  to become inverted T wave  later ?

Possible .But we  are not sure ! A static T wave is safer than a dynamic T wave .

Final message

Flat ST segment and absent T waves  represent a same spectrum of ECG  findings  which  are  referred to as  non specific ST segment changes in  clinical practice .Generally , they have  little clinical significance.* In our experience we have found , female patients, Anemia  hypothyroidism  are  often associated with flat ST segments  . If CAD is suspected exercise stress test  should be done. Some believe a flat ST segment  is more likely to  result in EST positivity (Not necessarily true positive !)

* Non specific ST/T changes by itself is a  huge topic.  Ideally the term non specific ST /T changes should be avoided , as it  primarily came into vogue  to denote non ischemic ST segment (Still , other pathologies are very much  possible) It is estimated there are about  50 causes for non specific ST/T changes , right from a  benign situation  like deep   respirations , to significant  myocardial disorders. However , it still makes   good clinical sense for a  general practitioner  , to refer to a cardiologist , whenever ST  segment deviates  without any reason .

Read Full Post »

For  a police officer who visits a crime site  every one looks like   a culprit. For a cardiologist  sitting in coronary  care unit  all chest pain  will have to look like  an infarct  !  Then only he is a cardiologist !

A rare , but costly mistake occasionally  happens . When a  patient with severe chest pain in the  retro sternal region with ST elevation in ECG , enters the ER  there is little  reason to suspect any condition other than STEMI !

This is how medical  errors takes place

Medicine is an art , we can not take it as granted .Acute MI can present with normal ECG and a dramatic ST elevation need not be MI

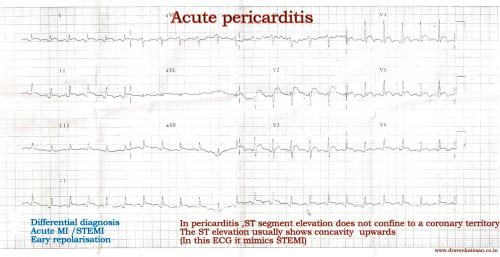

Here  was  a patient who presented with this ECG and one our fellows correctly diagnosed the condition .

Most  physicians would have thromolysed this patient or  might have wheeled into cath lab.  We have such events reported from primary  PCI registry .

Key differentiating points

  • Diffuse ST elevation not confining to a arterial territory
  • Absence of reciprocal changes
  • ST  segment with concavity upwards.
  • Echocardiogram and enzymes will be useful

iFAQs  in pericarditis

What is the mechanism of ST elevation  pericarditis ?

It is actually a zone of epicardial or Sub epicardial injury.

What will be the ECG finding if STEMI is associated with fibrinous pericarditis ?

Double dose of ST elevation .Mimics  a re infarction.

What are the dangers of thrombolysing a patient with diffuse pericarditis ?

It can bleed into pericardial  space

What happens

What will be the ECG finding in localised pericarditis ?
