Archive for April, 2013

The hidden link between Mitral annular calcification and CAD !

Posted in cardiology -Therapeutics, Cardiology -unresolved questions, cardiology women, Cardiology-Coronary artery disese, echocardiography, MVPS, valvular heart disease, tagged , , , , , , on April 19, 2013| Leave a Comment »

Why should mitral  annulus gets calcified ? .  Degenerative  calcification can be benign in  elderly .  If it occurs prematurely (say < 55 years )   there is enough reasons to worry .  This may represent a systemic vascular inflammation and  is considered a surrogate marker for athero- vascular -sclerosis .  A study from Cidar Sinai  , Los angels  has well documented the link way back in 2003  !

mitral annular calcification mac cad link

This is a  large study involving  17 735 patients (who were investigated for symptoms of CAD )   were screened.

The incidence  of MAC was high (As expected !)

  • 35% > 65 years
  • 5 %  < 65 years
Angiography  revealed more surprises .
  • The incidence of angiographic  CAD among those who had MAC and no MAC   was  88% v68% respectively ,( p = 0.0004),
  • Left main coronary artery disease  was (14% 4%, p = 0.009)
  • Triple vessel disease  was (54% v33%, p = 0.002).
mitral annular calcification www_drsvenkatesan_co_in

Image source  S.Atar ,  Heart 2003 : 89, 161-164

Conclusion
This study concluded ,  CAD is more aggressive in patients with MAC. It can  also be  an independent  predictor of  high risk CAD .
Further Implications  of MAC
  1. MAC is more common in women, especially diabetics .
  2. Degenerative Mitral regurgitation  is common ,rarely  mitral stenosis
  3. Recurrent VPDs and even  trouble some mitral annular VT is possible
  4. Extensive calcific lesions in coronary  artery is also reported with MAC.
Link between Stroke and MAC .
This was well proven by this paper  published in  NEJM in 1992.
MITRAL ANNULAR CALCIFICATION AND STROKE NEJM EMELIA BENJAMIN 1992

Read Full Post »

How to Image LSVC by Echocardiography without contrast ?

Posted in Echo library and gallery, echocardiography, Infrequently asked questions in cardiology (iFAQs), tagged , , , , , on April 19, 2013| 1 Comment »

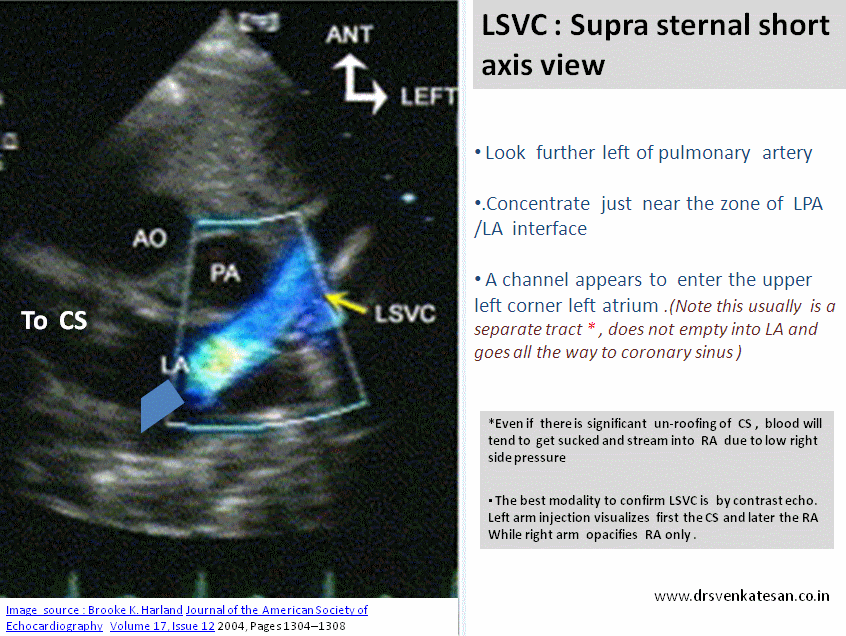

lsvc persisitence lsvc left superior vena cava

While 2D echo visualizes the LSVC , it is the color Doppler flow (in blue ) that confirms the flow going away from transducer towards coronary sinus .Please note , if the LSVC shows red flow it indicates the left vertical vein and the flow is from below up .This is supra cardiac TAPVC . It makes immense embryological sense to understand LSVC and and left vertical vein are both same entities only the connections are different .

Click over  for a high resolution Image

Read Full Post »

Does PCI convert “A positive stress test” into “Negative” in all patients with CAD ?

Posted in Cardiology - Clinical, cardiology -ECG, Cardiology -Interventional -PCI, cardiology -Therapeutics, Cardiology -unresolved questions, chronic total occlusion (CTO), Clinical cardiology, cto chronic total occlusion, Diabetes and Heart, excercise stress test .EST, Infrequently asked questions in cardiology (iFAQs), tagged , , , , , , , , , on April 9, 2013| Leave a Comment »


Those who answered  “Yes” ,  can leave this article . Those who answered  “No” read further .

* Logic would tell us myocardial revascularisation should correct  stress induced ischemia and it  should disappear promptly  . This does not happen in all cases  real world  ! That is  why medicine is  different  from mathematical science .

Some of the  reasons for  persistence of stress positivity even after an apparently successful PCI are  . . .

  1. Incomplete  correction of ischemia. (Ideally  to be referred as failed PCI )
  2. Error in Identifying culprit 9Angina related artery ) .Common feature of poorly worked up  multivessel CAD.
  3. Re-stenosis /Re-occlusion
  4. Doing very early stress test without giving time for revascularisation to work *
  5. Rapid progression of non culprit lesions .(Sub -optimal medical management )
  6. Chronic N0-Reflow phenomenon  surrounding  area of infarct .(Especially in  PCI of CTOs)
  7. Dyskinetic  or grossly remodeled ventricular segments  can result in non ischemic positive EST response (ST drag **)
  8. Associated systemic conditions especially  Anemia/ SHT & LVH -(False positive )
  9. Many diabetic patients may  continue to show stress ischemia due to  small vessel disease.
  10. A  patient with  syndrome X  characters  can have incidental  epicardial lesion as well . In such a patient EST will always be positive .

* Optimal time to do  EST  for assessing the  efficacy of  PCI/CABG is not established .Six months may be the reasonable point .If done within 2- 3 months it may  end  up  in embarrassment for the Interventionist . (So only it is kept at 6 months , this also help us  greatly  as  we can always blame it on poor life style control and progression of  the disease !)

** No reference  for this  , a  personal observation .We know  Q leads following MI ,  will show ST elevation during stress test especially if the segments are dyskinetic  . In leads diagonally opposite to q leads ,  ST depression is observed . This may not be  a evidence for true  ischemia . It probably represents   ST drag due to mechanical stretch .

Read Full Post »

Bifurcation angle is what ?

Posted in Cardiology -Interventional -PCI, cardiology -Therapeutics, cardiology- coronary care, cath lab tips and tricks, tagged , , , , on April 7, 2013| Leave a Comment »

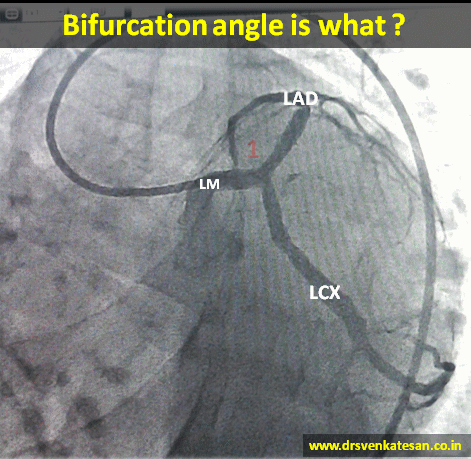

bifurcation angle

  • At any branch point three angles are possible .True bifurcation angle is formed between LAD and LCX .
  • The angle between LM and LAD or LM and LCX can also be important in specific situations ,especially when we encounter short left mains and Medina 1,1,0 lesions .
  • Major bifurcation angle can  occur in mid  segments  as well ,  between LAD / major Diagonal  , LCX and OM.
  • Logic would tell us the  left main  bifurcation  angle is relatively fixed by the anatomical AV and IV grooves. Still early course of LAD and LCX can be out of grooves.
  • Further ,the bifurcation angle is imparted some amount of dynamism by cardiac cycle . It can vary between 80 -120 degrees (LAD/LCX).
  • Most importantly various  angiographic views can alter the true angle (by illusion ) in dramatic fashion . RAO caudal view appear ideal to measure it. (LAO caudal make every bifurcation angle obtuse !)
  • Acute angled bifurcations are prone for stent related mechanical issues both during deployment and in the long term outcome . (When two stent technique is used) This is because ,  acute  angled bifurcations has a tendency to drift the carina , and  encroach  the lumen  which can create new  turbulence . Of course final kissing balloon is expected to reduce this hemodynamic side effect at least on paper !

Read Full Post »

Learning from Ants : Innovations does not require sixth sense !

Posted in bio ethics, medical quotes, tagged , , , , , on April 5, 2013| 1 Comment »

Modern  men think they are invincible .  They can innovate every thing under the sun with their sixth sense . Alas  . . . we forget  human values  ! .It does not require a least of   that  special sense   . Reaching out to a life in distress   require  an animal sense !

HY05_BIODIVERCITY__1417604e

The Antics ! Crossing a bridge with fifth sense ! The Hindu  5th April 2013 Image : Michale Nongthombam.

A bunch of  Ants plan   how to  ferry   a daughter Ant  , across a broken bridge and execute it  efficiently with their tiny little cerebrum !

While , we boast around  with the  later   . . . still   . . .   there is no end in sight for all those  self   inflicted sufferings . . .   these lesser mortals  live happily  in this human infested planet !

Read Full Post »

« Newer Posts
