PAH  is  the major determinant of surgical outcome of left to right shunts. In this  modern era of cardiac care  allowing a child  with   left to right shunt   to progress to a  stage of   Eisenmenger syndrome  is  considered  as a  huge medical failure . But  , this is still rampant in many of the developing countries .

Cardiologists are divided over the issue of  operability of Eisenmenger syndrome .The confusion is largely due to the conflicting data of outcome in these patients. While  there is strong   data  when  PVR exceeds  SVR  ,  the death is imminent in the post operative period .

What has complicated the issue is   there are  many case reports  where severe PAH patients have been successfully operated. Most would think it is a statistical exception and one can  not alter the traditional criteria based on few case reports.

But ,it remains an irony as on 2009 ,  we do not have a proper methodology to assess reversibility of PAH in Eisenmenger syndrome . Further ,  there is a  significant number of  patients with high PVR  , who continue to experience  an  unabated left to right shunting .  We do not have an answer  for either the mechanism of such shunts and  how to manage these patients.

Click over the slide  to view full  PPT  presentation in PDF format .

This short paper was presented in the Annual scientific sessions of cardiological society of India 2009 regarding the usefulness of a new parameter to assess reversibility of PAH. This may not be called as  a study rather a report of  our experience  in  five  patients  with eisenmenger syndrome

Download the full PPT presentation in PDF  format.

pulmonary artery pulse pressure

Read Full Post »

PDA is a common congenital heart disease.It results in progressive left to right shunting.

Development of pulmonary hypertension is the major complication.PDA need to be closed once the diagnosis is made.Until recently surgery was the only option.Now we have device, coil closure   available. Not all ducts are amenable to device closure.

For a duct to be closed by device we have to know the exact anatomy of the ductus.echocardiography has  limitation to  accurately image the ductus. Angiogram is the specific method.

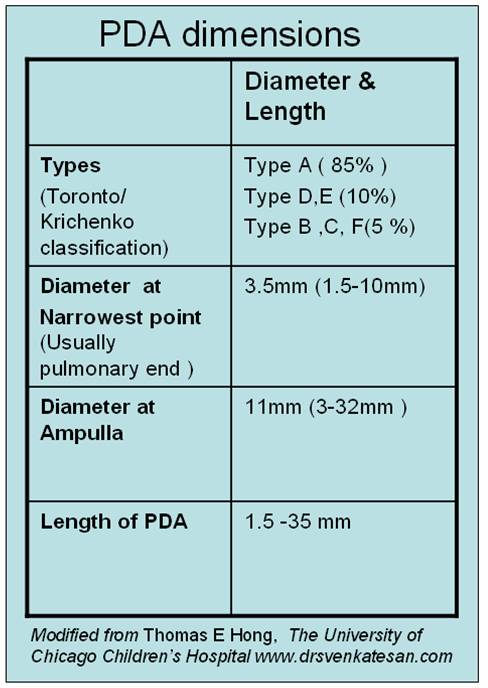

What is  the normal length of patent ductus  arteriosus ?

The length of duct is very variable it can vary between 1 mm to 35  mm.

A 2 mm PDA is nothing but direct adherence of aorta and pulmonary artery (Ultra short form , similar to AP window )


What is the branching angle of ductus from aorta and the entry angle at the pulmonary artery ?

This is an important determinant of technical success of device closure .Very abtuse or acute angled ductus can

face difficulty in deploying devices. The normal angle in lateral view is between 30-60 d

How do you classify PDA ? .

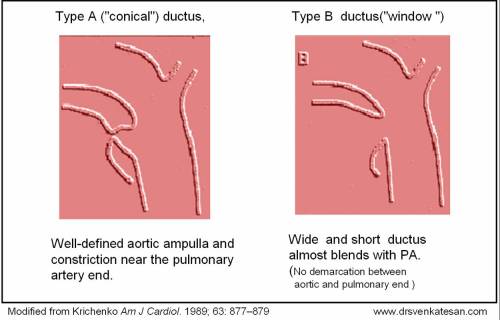

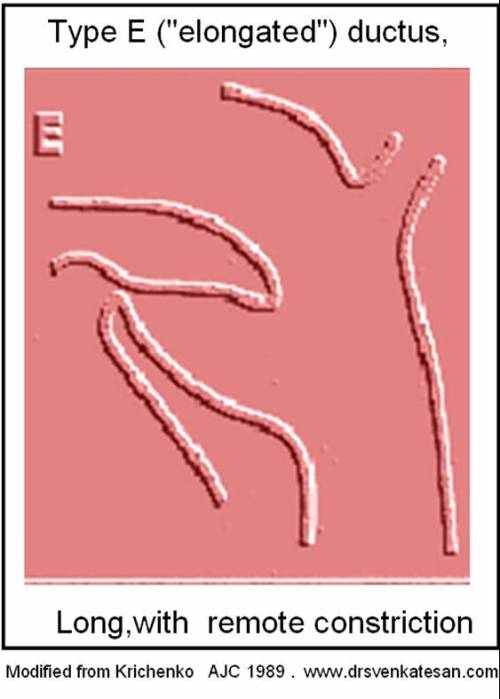

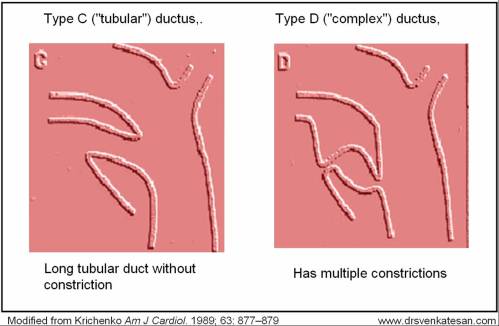

There is only one classification of PDA available  based on angiogram .Krichenko*




Taken from  *Krichenko A,. Angiographic classification of the isolated, persistently patent ductus arteriosus and implications for percutaneous catheter occlusion. Am J Cardiol. 1989; 63: 877–879

Review article on PDA


Read Full Post »

Coronary collateral circulation is the most poorly understood, and often neglected concept among the cardiology community.There is a general perception , in obstructive CAD ,  coronary collaterals are an inferior modality of  back up blood supply than artificial collateral (Also called CABG ) ! One of the reasons,  it is   been ridiculed by many  mainstream cardiologists is   because  , it comes by nature , and also free of cost !

The often quoted statement* ,collateral blood flow can not sustain blood flow during exercise ,  is not based on solid scientific data. In the real world , there are thousands of patients actively pursuing life with chronic total occlusion and good collaterals.

It is surprising , there is no  physiologically valid ,  controlled study available to compare CABG with natural collaterals

*When repeatedly told , a  statement becomes a fact !

It can be assumed (Unscientifically ofcourse ! )   the  remarkable  success  of medical therapy  in COURAGE  and the OAT * study  can be attributable to the naturally occurring coronary collateral circulation.

* Summary of COURAGE & OAT : A   block  in the coronary artery  need not be opened  to prolong human survival !

You draw your own conclusions from the  following case study

A 40 year old women , with stable angina and good physical activity

Her angiogram shows.


RCA injection
