Posts Tagged ‘aortic dissection’

Aortic dissection is a unique cardiac emergency that tests our collective understanding of vascular anatomy and pathology .It poses the ultimate challenge to the expertise and wisdom of both cardiologists, and surgeons.

It’s all about freezing the Time

The philosophy of management swings between near-total Inaction* in some (As in most Type B & few Type A as well ) to “No holds barred” approach in others. (In most Type A and few Type B).

*Read it (also) as medical management that includes powerful Aortic pulse attenuation therapy with beta-blockers ( Unfortunately medical management is considered as Inaction by many current generation cardiologists)

Advanced Aortic Imaging is the key

A rapidly focussed TTE usually confirms the diagnosis.TEE might be used but carries a small risk of directly aggravating dissection when performed in an unstable patient. Conventional CT provides good (but limited) information, spiral MDCT delineates the vascular anatomy in a more clear way. MRI probably scores over and adds flow dynamics.

(4D Phase-contrast MRI showing slow helical flow in the false lumen and high-velocity flow in the true lumen. Computational flow dynamics will help assess entry point, plane of dissection, calculate false lumen Index, pressure and wall stress in true lumen and Aortic branch compromise etc . Image courtesy. The Lancet Volume 385, Issue 9970, 28 February–6 March 2015, Pages 800-811)

What is Non-A Non-B dissection?

This is a newly recognized subgroup. It’s not a surprise as the imaging modality improved we found the existence of this subset. In Non-A -Non-B Dissection initial tear involves the Arch and threaten to go retrograde A or antegrade B. We also realized there could be an apparently illogical transformation of type B becoming Type A, later on, due to late retrograde dissection.

The incidence of Non A , Non B dissection is about 10% (Ref 1). Here the outcome between surgery and medical is confusingly sitting at equipoise.

The traditional Debaky and Stanford classification didn’t address this subset.Though some other classification Like (DISSECT (Ref 2) /PENN (Ref 3) tried to clarify .

A new classification based on Type ,entry and malperfusion appear perfect.

TEM classification of Aortic dissection

This is a practical classification that uses Stanford as a base model but adds entry point and branch vessel compromise. This is analogous to TNM classification of tumours.(Hans Hinrich Sievers et al)

Where does EVAR stand ?

The management strategy of dissection of Aorta got an important makeover in the last decade (for good mostly ) as interventional cardiologists and radiologists landed in the hitherto to surgical domain with endovascular reconstruction (EVAR) .It is handy mainly in the complicated type B and complicated Non A and Non B . One more viable possibility is the hybrid approach of combining EVAR and surgery in delayed presentation of Type-A.

Single point Principle in Aortic dissection management

Rapid sealing of the entry point and arresting the false lumen progression wherever it is and by whatever means (especially in Type A dissection ) reduces mortality significantly.

Though exit points are important for comprehensive management, one need not waste time to locate and search for exit points. In a specific group of patients, it may not be visible or even absent altogether.

Another critical determinant

Detection and tackling the retrograde dissection and involvement of coronary ostium distortion and damage to Aortic valve , and pericardial invasion is the key to reducing early mortality in Type A dissection

The final outcome in God’s domain

The IRAD and other global registries in Aortic dissection has taught us important lessons. We are continuously learning and the patient outcome is improving.

Still, one unresolved statistical ( metaphysical ) mystery is how to identify? that small subset of patients who are lost because of inappropriately early aggressive Intervention who would have otherwise been pushed into natural survivors of Inaction or less action.

Reference

1.Sievers H-H, Rylski B, Czerny M, Baier ALM, Kreibich M, Siepe M et al. Aortic dissection reconsidered: type, entry site, malperfusion classification adding clarity and enabling outcome prediction. Interact CardioVasc Thorac Surg 2020;30:451–7.

2.Dake MD, Thompson M, van Sambeek M, Vermassen F, Morales JP;DEFINE Investigators. DISSECT: a new mnemonic-based approach to the
categorization of aortic dissection. Eur J Vasc Endovasc Surg 2013;46:175–90

3.Augoustides JG, Szeto WY, Desai ND, Pochettino A, Cheung AT, Savino JS et al. Classification of acute type A dissection: focus on clinical presentation and extent. Eur J Cardiothorac Surg 2011;39:519–22

Metanalysisfor Non A Non B dissection

Read Full Post »

What are the determinants of  dissecting  path   in Aortic dissection ?



Aortic dissection stanford002

Aortic dissection is  taught to us as a dramatic cardiac emergency where the blood  enters one of the planes of aortic wall and travels  in a random way . The wrong way blood instead of flowing within the lumen invades the vessel wall .(Vascular Tsunami ?) It may (or may not) leave the aorta at a distance resulting in various combinations of true and false lumen. Much like a tsumani  its also triggered by an energy releasing  blood pressure spikes hitting on the weakened  aortic wall rupturing the Intima. While acute dissection are often dramatic chronic dissection can be more subtle clinically.

Apart from the site of entry , blood pressure , condition of aortic vessel wall , there seems to be an invisible force that direct the dissecting tract.How it spares or compromises the arch vessels in selected few , as it travels down remain a mystery . If we can predict and track the plane of dissection by any means with computational  hemodynamic models , that will help us plan strategies. Beta blockers are used to reduce the shearing pressure , and emergency surgery is required in many type A dissections.



aortic dissection animation stanford a b classification 002

Do we see a “mini” Interventional opportunity here  ? To arrest or direct the dissecting tracts  into less benign zone. Shall we deploy an emergency  metal ring barrier  just proximal to aortic arch in Type A or  just above renal arteries in type B to prevent vital organ compromise ? This procedure can  be done fast , instead  planning a  elaborate endovascular intervention which is logistically difficult in  arch vessel dissection .This could also act as a bridge to definitive surgery. (Can we compare this with  bush fire fighting which are tamed by c0ntroled artificial fire lines and thus  avoiding spread to residential areas ! )

Read Full Post »

aortic dissection how safe is transesophageal echo tee

What is the mechanism of aortic injury by TEE probe ?

It is purely a mechanical  complication . The dissected/aneurysmal  segment   may  encroach the esophagus .The TEE probe if  faces any resistance  at lower esophagus , the procedure is to be abandoned .The false lumen  shares  a  intimate spacious  relationship with   esophagus and the probe can delicately hug the false lumen  ,  can  lift it accelerating the  tear. It is wise to  realise  coughing , retching or vomiting may amplify   the  frictional  force  between esophagus aorta  and the probe .

Reference

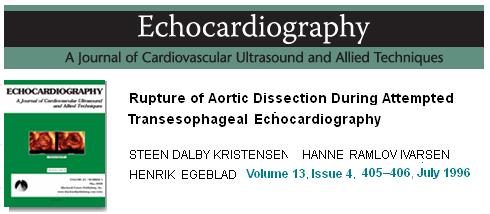

Risk of aortic rupture during tee in aortic dissection  tran esophageal echo

Final message

I would conclude the  risk  of aortic  rupture is negligible . If gently performed   TEE would remain a  simple ,  cost effective ,   vital bed side investigation inmost  cases of suspected aortic dissection.

Read Full Post »

Role of d dimer in acute aortic syndromes

D -Dimer is a marker of  intravascular fibrinolysis .It is a degradation product of fibrinogen. A level more than 500ng/ml is significant.In acute aortic dissection this level is reported to be more than 2000ng/ml.

The beauty of this molecule is it is elevated in three important chest pain emergencies.

  • Acute myocardial infarction
  • Pulmonary embolism
  • And now aortic dissection.

The issue is not simple , as we know any intravascular coagulation and lysis can elevate this molecule.In patients with chronic CAD as like a chronic thrombotic lesions within the coronary arteries can also elevate d dimer.

Similarly , in portal, cortical, deep venous thrombosis all result in elevated D dimer.

So , such a non specific test  , how can be  useful in the diagnosis of aortic dissection ?

Yes, you are right ,

D Dimer helps us  not in diagnosing aortic dissection but  helps us in ruling out a possible dissection

D-Dimer levels <500 has a negative predictive value of 98% .

What is the bio- chemical  dynamics of  D dimer in dissection ?

D dimer in aortic dissection is mainly secreted within the false lumen. For d dimer to secrete into  systemic circulation  the clotted area should be exposed to a adequately flushed systemic blood at a good perfusion pressure.The contact area between the clot and fresh blood  is of critical importance.

d dimer aortic dissection false lumen

So ,  even though it has been reported d dimer has near 100% negative predictive value . . . is there a chance a dissections might occur with normal  d dimer levels ?

Yes, very well possible with due credits to published data

  • A dissection without thrombus(Rare . . . but still possible !)
  • A clot confined to false lumen with entry or exit points sealed.
  • A dissection without a exit point.
  • Intramural hematoma with no communication with aorta

Infrequently asked questions

  1. Time window ? Dimers are mainly useful in  patients who report before 24h after the onset of chestpain.
  2. How long it takes for the dimers to  get excreted ?
  3. Can coronary dissections in STEMI elevate dimer ?

Final message

D dimer is  mainly useful in  “not making a diagnosing” aortic dissection.

If  dimer levels are strongly  positive and  clinically the patient  has  has no evidence for acute MI or acute pulmonary embolism  and continues to have chest/back/atypically located pain  suspect aortic dissection , and order for further imaging like TEE,MRI, MDCT etc.

* Do not forget the role of routine , simple bedside transthoracic and suprasternal echocardiogram.It can diagnose dissection correctly in good number of patients.

** Never oder for costly thoracic imaging whenever d dimer is elevated.

*** When you send the sample for dimer make sure to mention  the clinical likelyhood of dissection .If it is very high the lab has every reason to reject the sample and suggest you to go ahead with thoracic images.

This is because ,  it could be costly miss . . . if you depend on dimer to diagnose a dissection

Imagine this scenerio , while your patient has a absent left radial pulse due to dissection and you are waiting for the lab report to arrive !

Never use it for diagnosing aortic dissection.

Read Full Post »

                                       Aortic dissection is a complex cardiac problem and a  killer disease .Even though it is a fancier to make a  diagnosis  of aortic dissection in any intractable chest (or back )pain   the  most common error  committed by physicians is failure to recognise it  .

Is it possible to diagnose or atleast suspect aortic dissection  by a rapid screening biochemical test ?

Yes,  it seems so

  1. D Dimer , a product released consequent to  intravascular thrombosis is elevated  by >500ng in most of the patients with dissection.
  2. Aortic smooth muscle heavy chain estimation is the other option.

aortic-dissection-d-dimer

Read this original article by Patrick Ohlmaan

Click on the link

http://www.medscape.com/viewarticle/530783_print   Courtesy Medscape

 What happens once a diagnosis of aortic dissection is made ?

It is not a great achievement to make a diagnosis of aortic dissection.It is only, a  beginning of a long  and often   tedious decision making process . A real tough task , on hand for the cardiothoracic  surgeons. It is a team work , needs the interaction of cardiologists, radiologists and cardiac surgeons to bring an optimal outcome.

The major issues are

  1. Never try to  manage this problem in a small hospital or facility. Always send the patient to a teaching hospital ( of course , not all teaching hospital can  tackle  this   either , so enquire about their expertise ! )
  2. No credits for making a simple diagnosis of dissection.One has to exactly locate the entry point and exit points if any.
  3. Aortic root and arch  involvement  is of major importance in determining the modality of therapy.
  4. Debaky classification is not  of academic interest ! it has a purpose . Generally type A dissection(Proximal ) require emergency surgery
  5. Differentiating true lumen from false lumen is of critical importance , it needs a meticulous transesophageal echocardiogram.( Some times one may , never  be  sure which is true and which is false lumen  , funnily .in descending aortic  dissection it may never matter for the patient !) Self healing of many dissections with thrombus is possible.
  6. Controlling hypertension with powerful parentral antihypertenive drugs (Labetalol . . . ideally )  is vital.
  7. Side branch  involvement (spiral dissections) especially arch vessels and renal arteries  make this entity much more complex
  8. Isolated distal dissections and some low risk proximal dissections  can indeed  be managed conservatively(Also called non surgical ! ) Some cardiologists or even institutions  hesitate to  put a aortic dissection with medical management .They feel it is inferior form of treatment . . . but realise , it is not  necessarily so !)



What is the other bichemical marker for disscetion ?

The aortic smooth Muscle Myosin Heavy Chain was proposed as a useful marker for diagnoisng dissection.

Diagnostic Implications of Elevated Levels of Smooth-Muscle Myosin Heavy-Chain Protein in Acute Aortic Dissection: The Smooth Muscle Myosin Heavy Chain Study  Toru Suzuki, MD; Hirohisa Katoh, PhD; Yasuhiro Tsuchio, MD;  Annals of internal medicine 3 October 2000 | Volume 133 Issue 7 | Pages 537-541

 The abstract from annlas of internal medicine follows Readers from India can get the full text article free

  1. http://www.annals.org/cgi/content/abstract/133/7/537
  2. http://www.annals.org/cgi/content/full/133/7/537


Read Full Post »
